- Compressor wheel - 62mm Inducer / 86mm Exducer.
- Turbine Outlet - 64mm
- 78lb/Minute Flow Rating
- 500-780HP Applications
- Variable preload angular contact bearings
- Twin gas ring seals at the compressor and turbine
- High strength, lightweight stainless steel center housing
- Full hydraulic damping of the rotating assembly
- Integrated oil contaminate filter
- M62 race material allows higher temperature operation
- Metallic bearing cages
The revolutionary UHF aero XR64S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30% giving the fastest response we have ever observed at this power level.

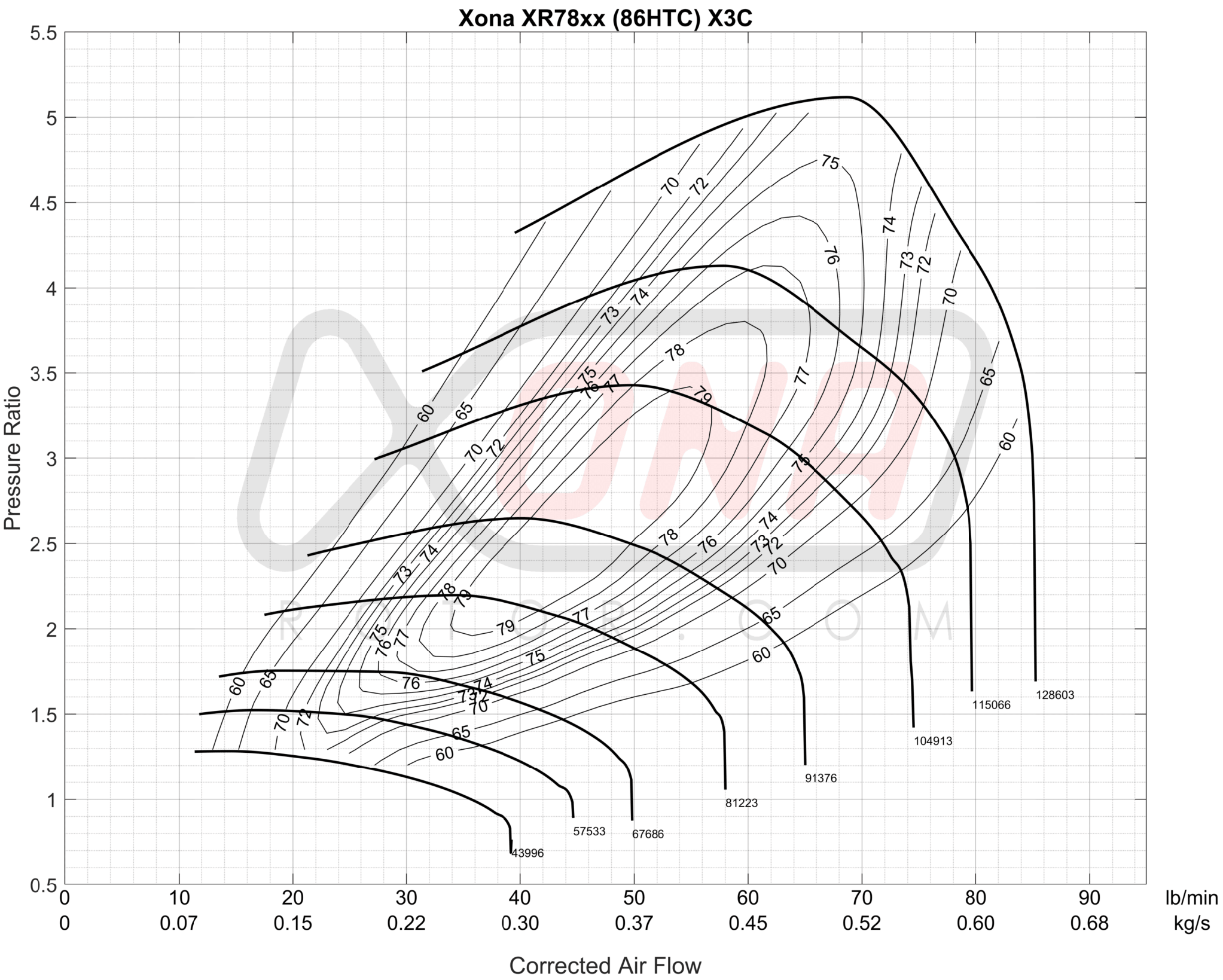

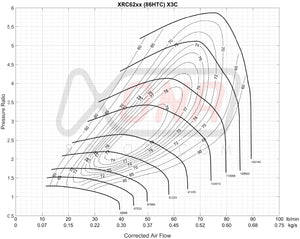

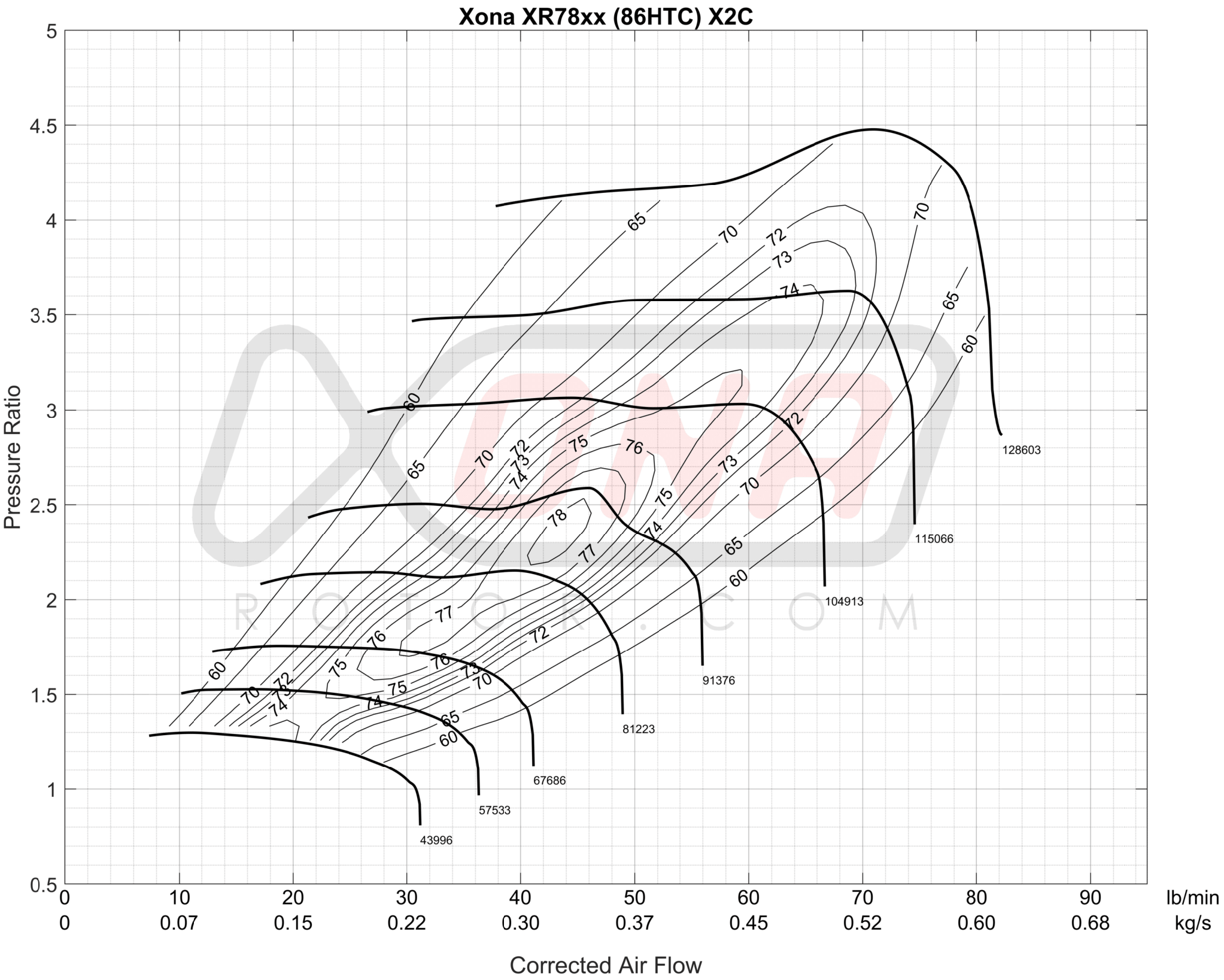

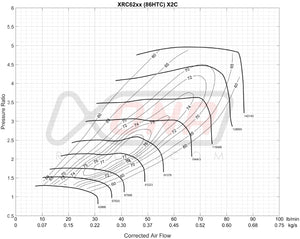

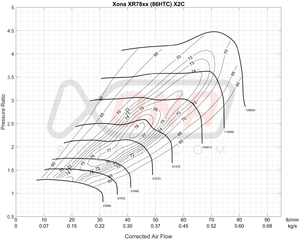

This turbocharger is available in either an X2C or X3C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
