- Compressor wheel - 82HTZ
- Flow rating - 71LB per minute
- CW Measurements - 59.1MM Inducer / 82MM Exducer
- TW Measurements - 67.7MM Inducer / 62.2MM Exducer
- Compressor Housing - 84MM FAP Cover
- Turbine Housing - FP 10CM Subaru Turbine Housing
- CHRA - Xona Rotor
- Oil Line - Included
- Gasket Set - Included

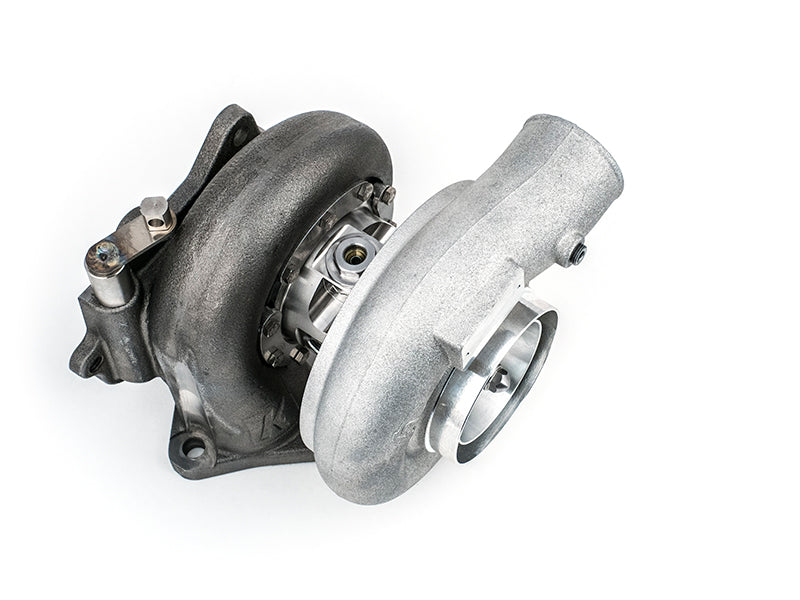

The FP Black™ turbocharger for the Subaru WRX/STI features the 82mm HTZ™ compressor section with our 84MM Flow Advancement Port™
compressor cover coupled to the 10cm2 turbine section. This combo
nearly maxes out the stock location possibilities on this platform. The FP Black™
flows 71LB a minute and is capable of producing upwards of 575WHP. Internal gate Subaru turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.
addition to the things you know and love about the journal bearing
Black, this unit utilizes our Xona Ball Bearing CHRA for increased
durability in situations where you might see low oil flow such as road
racing or autocross applications. Subaru XR turbos have an M12x1.25 oil inlet in the bearing housing, allowing use of our Subaru Oil Feed line.
Requires TGV Delete to fit in stock location
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
